DROP-12

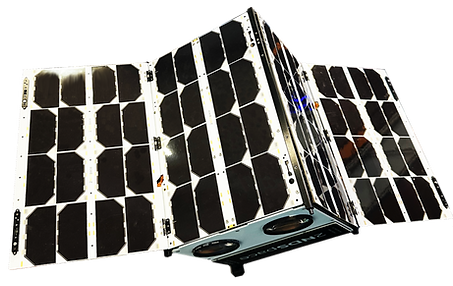

12U Deployable Solar panel
Select below the number of wings:
-
Deployable elements: 1
-
Deployment Configuration: 135°/90°
-
Front side power: 20 W
-
Backstring option: +20W
-
Body mounted option: +20W
-
Total Power: 60 W
-
Peak platform power: 60 W
-
OC Voltage: 20.8 / 41.6V
-
Suggested for: 6U/12U
-
Deployment System: Dual redundant
Reliability
Proven performance in space
Dual redundant deployment system
Redundant power lines
Redundant deployment feedback
ECSS compliant
Integration
Customizable layout options
Customizable string positioning
Multiple voltage options
Integrated Photodiodes
Integrated thermal sensors
Add-on
Magnetorquers
Umbilical & RBF
Custom sensors
Cubespace sensor interface
